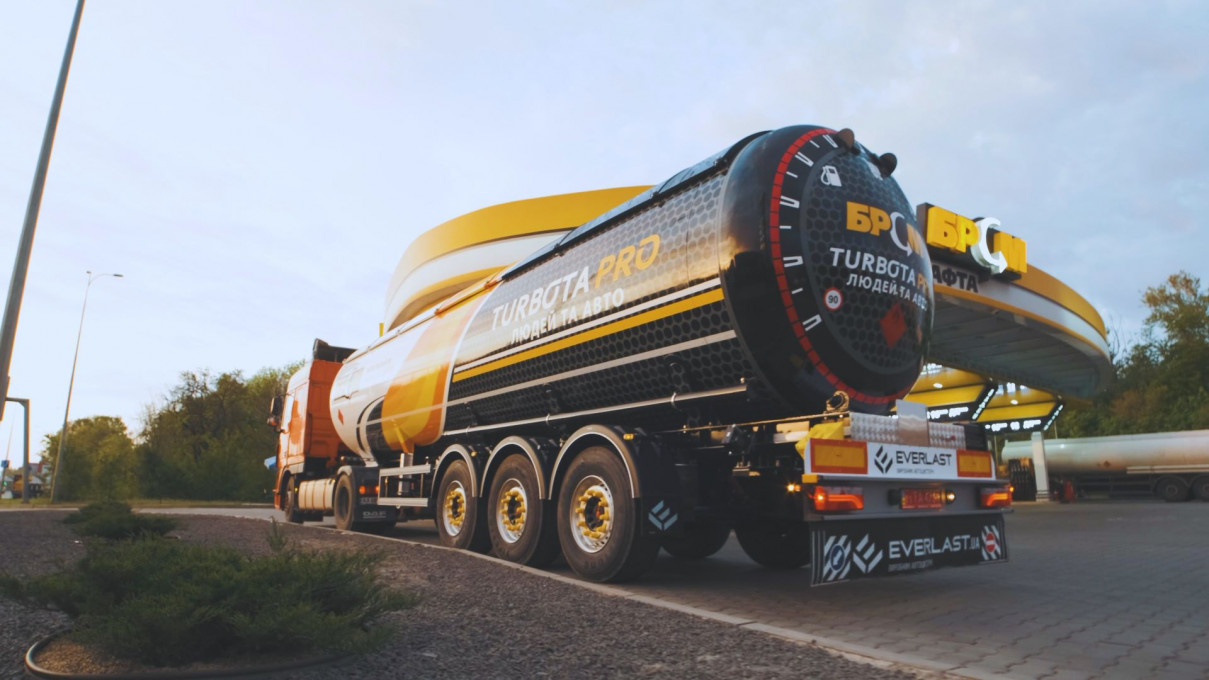

LPG-EVL - gas tank semitrailers (gas carriers)
45 / 46 / 48
Volume, m³
11.500 kg
Loaded weight
jacket/bottom - steel P460 NL2
Material type
Technische Daten
Container
- Volume: 42/45/48 m³
- ADR tanker code: P25BN
- Casing: 8 mm steel minimum thickness
- Bottoms: 10 mm steel minimum thickness
- Operating pressure: 1.6 MPa
- Test pressure: 2.3 MPa
- Operating temperature: from -20°С up to +50°С
- Aluminum sunscreen enclosure
Undercarriage
- Axles: BPW/SAF, 3 x 9 tons, air suspension, disc brakes
- Frame: steel subframe
- Brake system: WABCO, 4S/2M, ABS/EBS/RSS
Loading and unloading system
- SAMPI MA-7 mechanical flow meter with mechanical printing head
- Corken Z3200 pump with MR80 hydraulic drive (360 l/min capacity)
- Pneumatic drum
- Liquid phase drain hose DN32 (40 m), with fuel nozzle, Rego/Elaflex/Cavagna
- Liquid phase bottom pneumatic valve DN80, Rego/Fisher/Cavagna
- Gas phase bottom pneumatic valve DN50, Rego/Fisher/Cavagna
- Liquid phase back-flow valve
- Additional shut-off cock DN80, after bottom valve
- Liquid phase unloading shut-off ball cock DN50
- Liquid phase loading shut-off ball cock DN50
- Steam phase loading shut-off ball cock DN32
Safety system
- Safety valve 3", Rego/Fisher (2 pcs)
- OP-6 fire extinguisher in plastic box (2 pcs)
- Grounding coil in toolbox, 15m cable (1 pc)
- Grounding points on container casing (4 pcs)
- Electrostatic shields
Options
- Volume-weight flowmeter
- ANTIVOR system: GSM/GPS data transmission (possible only when a volume-weight flowmeter is provided)
Rechner für das zulässige Gesamtgewicht des Straßenzuges
Geben Sie Tankdaten ein
Video und Foto des Modells
Eigenschaften LPG-EVL - gas tank semitrailers (gas carriers)
- Reliable design
- Reduced weight of the tank semitrailer
- BPW/SAF/EVL off-road suspension
- Capacity: 42 / 45 / 48 m3
- Robust steel half-frame
- Adaptation to difficult operating conditions
- Compensators on each pipe
- ANTIVOR system - bottom valve opening sensor with GPS/GSM tracking
- Transport version
- Gas-dispensing version with mechanical flowmeter MA-7
- Gas-dispensing version with MicroMotion/Aurex/FAS volumetric mass flow meter
