Spirit tank semi-trailer
30 м³
Volume
L4BH
Tank code
3 Bar
Operating pressure
Technische Daten
Capacity
- 30 m³ of transported cargo (net)
- 33 m³ of tank volume with expansion (gross)
- Stainless steel AISI 304
- Working pressure - 3 Bar
- Test pressure - 4 Bar
- Tank code - L4BH
Undercarriage
- Axles: BPW/SAF, 3 x 9 tons, on pneumatic suspension, disc brakes
- Frame: Steel subframe
- Brake system: WABCO, 4S/2M, ABS/EBS/RSS
Loading and unloading system
- Loading hatch ADR, Ø 500mm, 3 Bar - 1 pc
- Loading hatch ADR, Ø 400mm, 3 Bar - 1 pc
- Pipeline DN 100
- Bottom valve DN100, ADR, pneumatically controlled
- Drain valve DN100, mechanically controlled, with cover (thread or brass)
Safety
- Safety valve, ADR, 3 Bar - 1 pc
- Possibility of sealing the hatches
- Protective box for the loading hatch
- Reflective contour marking
- 2 fire extinguishers in a plastic box
- Grounding circuit (4 points), grounding coil (15m cable)
Thermal insulation
- Polystyrene foam
- Stainless steel mirrored sheet cladding
- Plastic end caps
Rechner für das zulässige Gesamtgewicht des Straßenzuges
Geben Sie Tankdaten ein

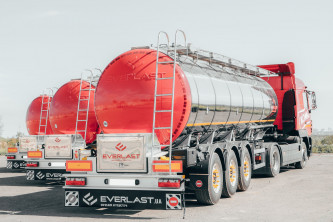

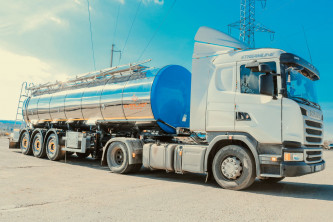

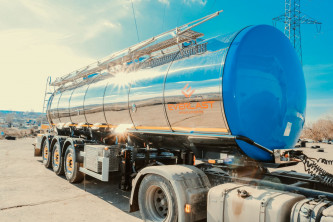

Video und Foto des Modells
Eigenschaften Spirit tank semi-trailer
- Reliable construction
- Lightweight semi-trailer tank design
- Sturdy steel subframe
- Off-road suspension by BPW/SAF/EVL
- Capacity of 30 m3
- Compartments from 1 to 5
- Tank material: stainless steel AISI 304/AISI 316, 4 mm
